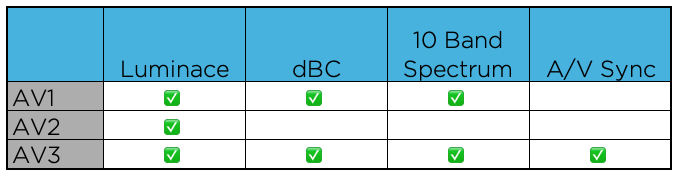

Product Variants
Cost-effective mobile device for brightness and audio checking for audio video projection system.

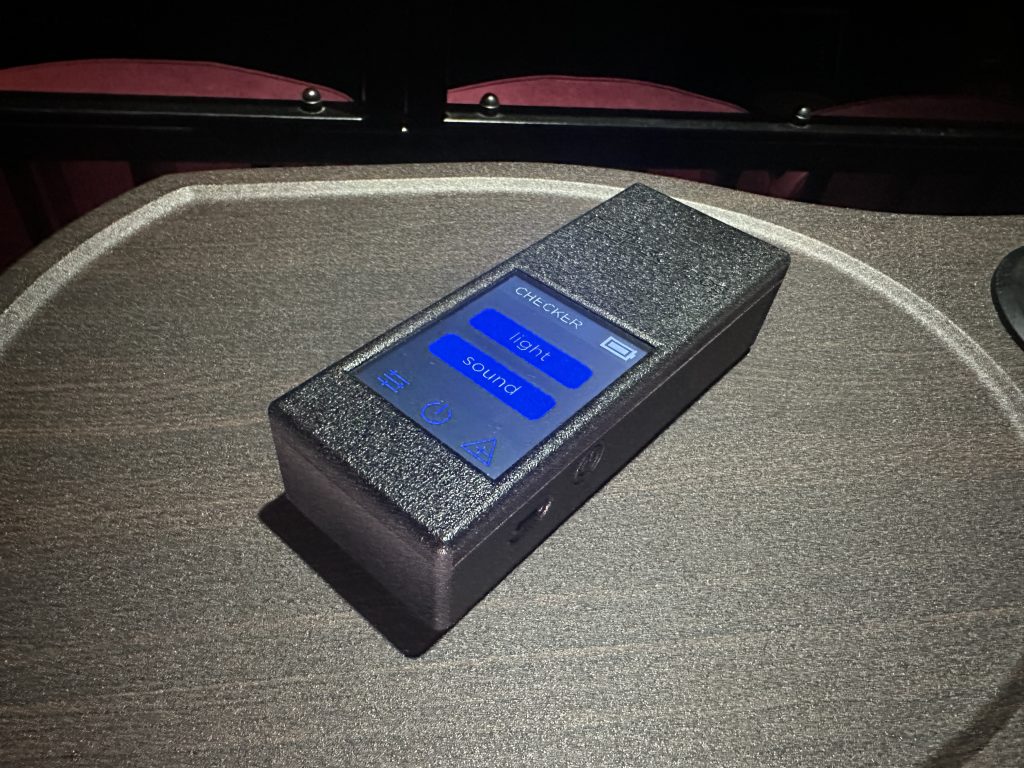

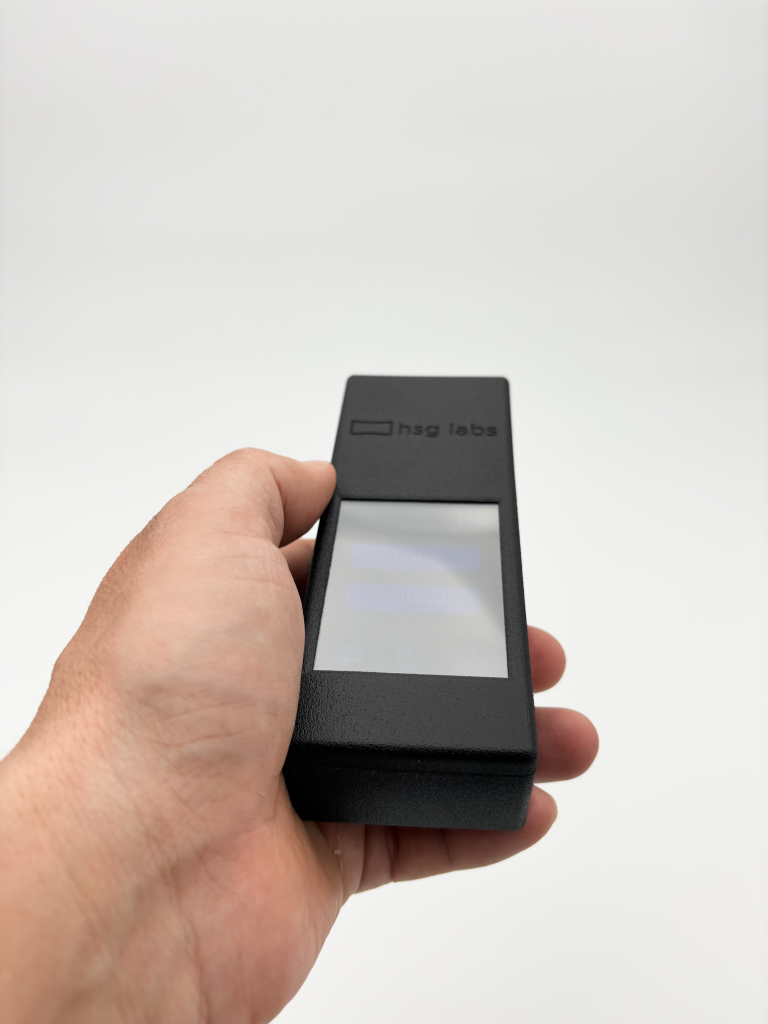

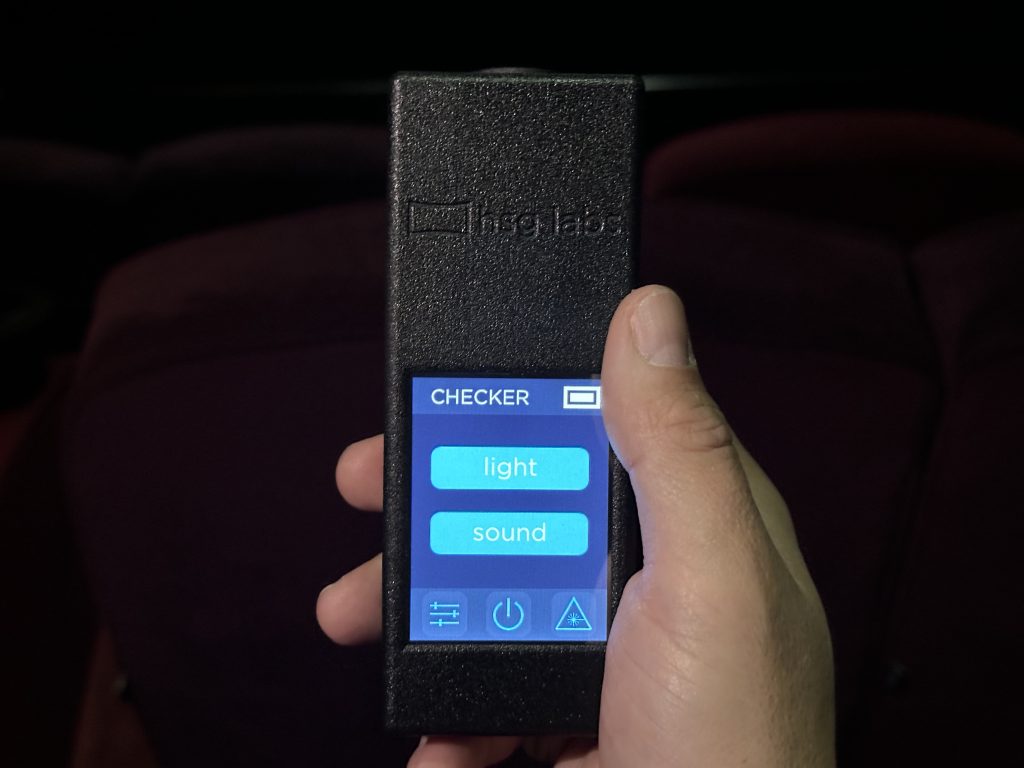

The HSG Labs Checker is a brightness and audio checking device for Cinema Owners, Technical Teams, Managers and Staff. Simple and easy to use, the HSG Labs Checker is a point and click device with an intuitive user interface designed for users with varying levels of technical expertise.

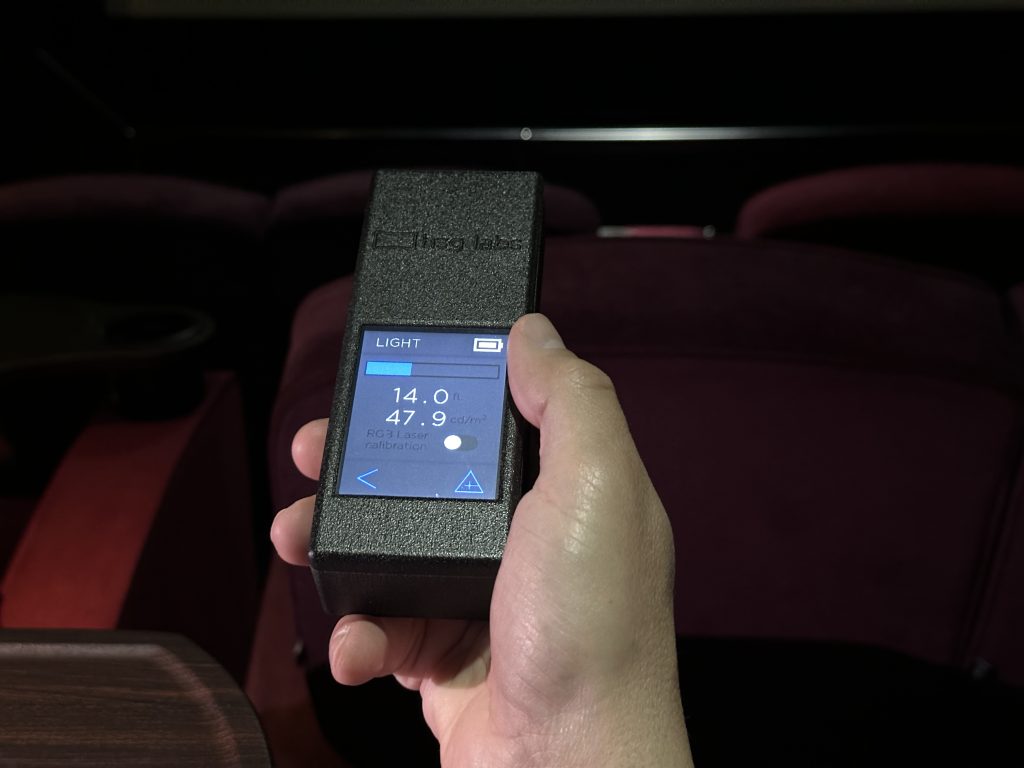

Capable of measuring brightness levels from 0 to 40 foot lamberts (fL), the Checker offers real-time feedback that supports tasks like new lamp installations, routine maintenance, and compliance checks. It’s equally effective in 2D and 3D projection environments, including the ability to take measurements through 3D eyewear.

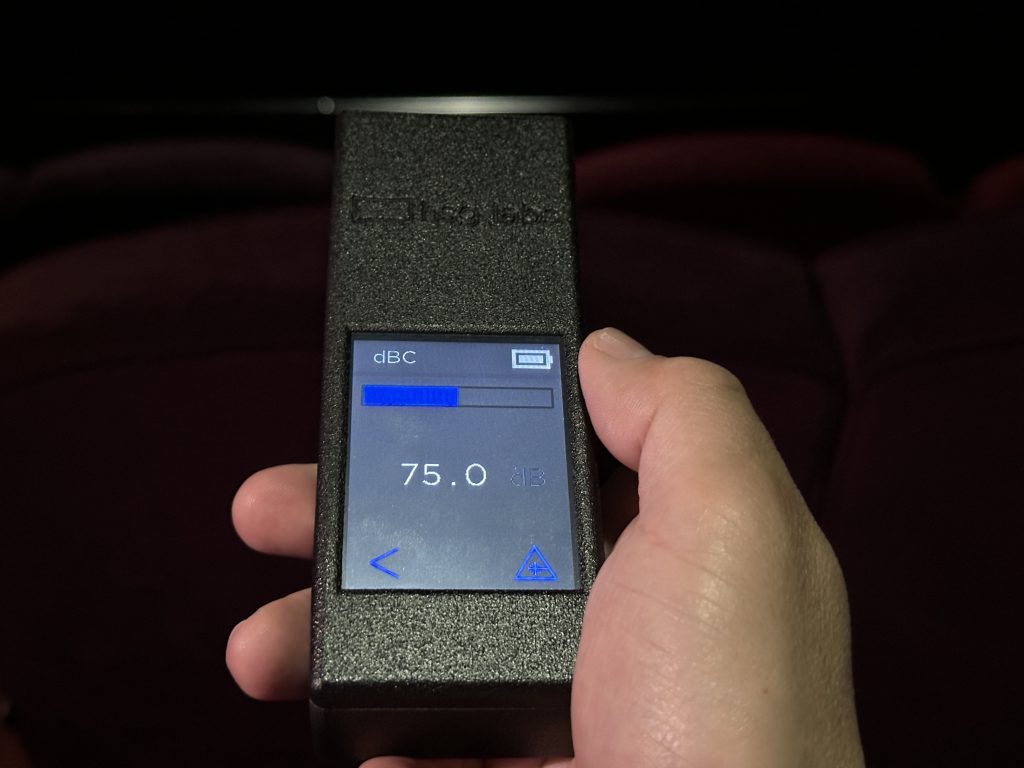

With the AV1 or AV3 models, the Checker is capable of displaying the decibel levels of a given speakers, display the spectrum (10-bands) and perform the A/V sync pop test (AV3 only) using approved test patterns.
AV2 model Checker is luminance only, no audio features are included.
The unit itself is battery powered and features a easy to read LED digital display. The battery life on the Checker is more than 4 hours with an auto-off feature for even more extended life. The Checker is integrated with Bluetooth Low Energy (BLE) for 3rd party device integration or data extraction.
Made in Europe
Key Functionality
- Measure screen brightness (with a range of 0fL to 40fL)
- Ensure screen consistency throughout the cinema (accuracy to 1 fL)
- Check speaker health with pink noise dBC and Spectrum measurements.

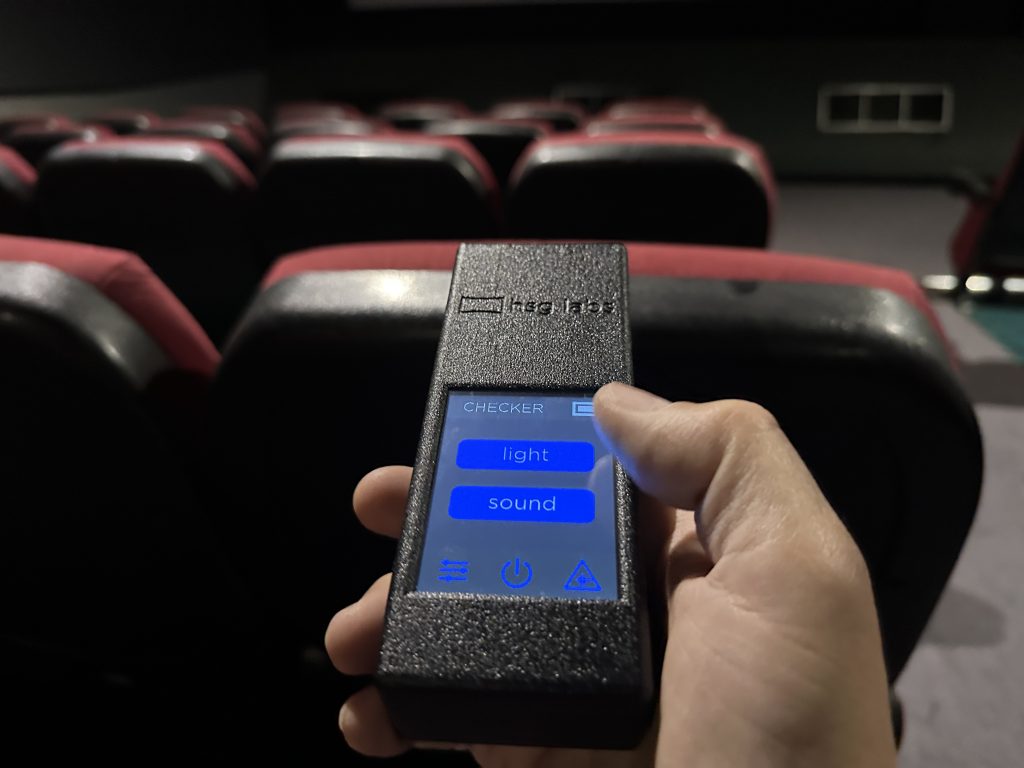

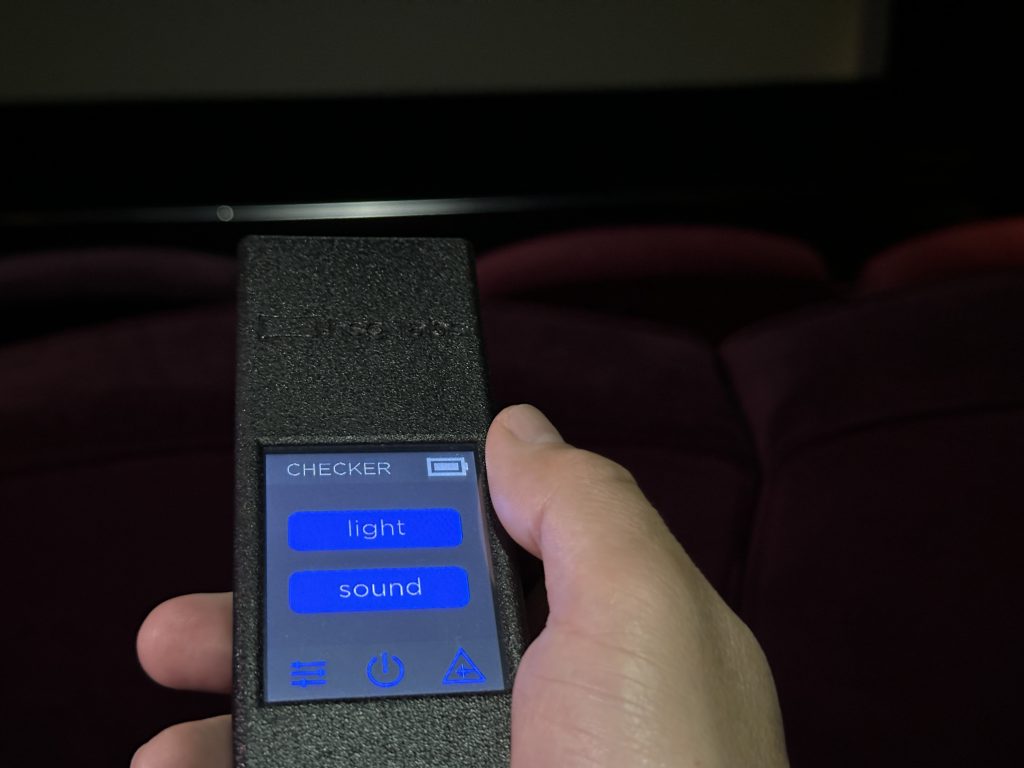

- Easy to use with simple laser pointer screen alignment, point and shoot speed, and mounting tripod
| Technical specifications | |
|---|---|
| Packed size (mm) | 200.3 x 142.4 x 48 |
| Packed Weight (g) | 463 |
| Device size (mm) | 147 x 56 x 33.5 |
| Device Weight (g) | 170 |

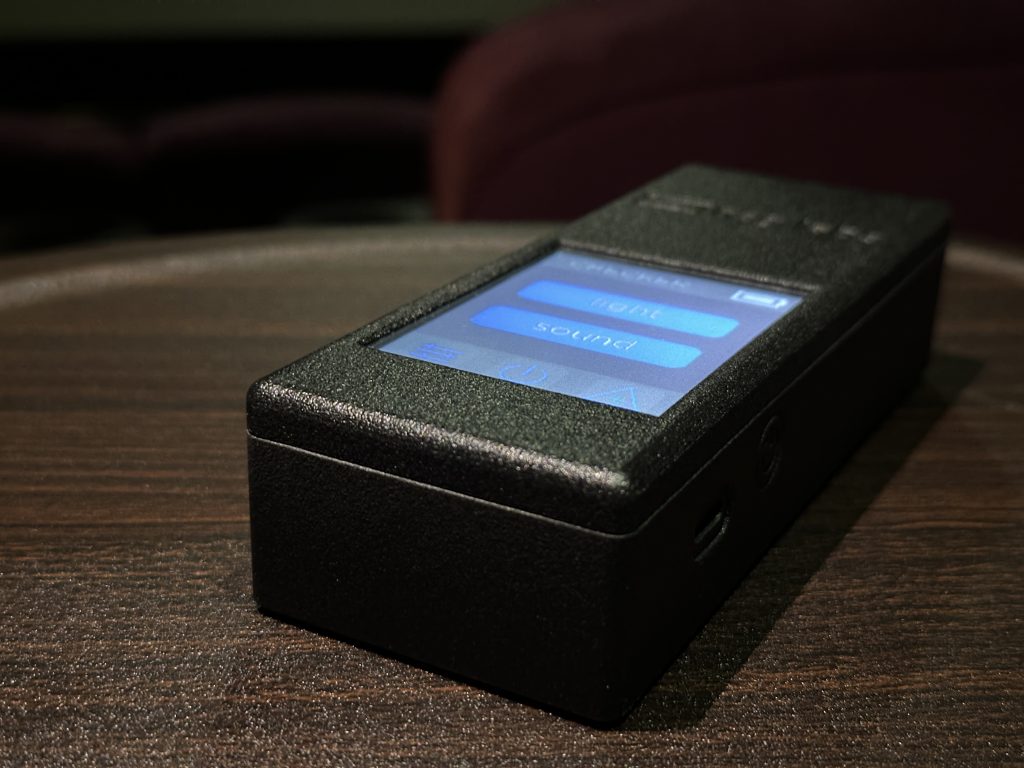

| Display | 2.8 inch TFT LCD resistive touch screen |
| Resolution | 320 x 240(RGB) – 65k colour LED Backlight |
| Battery | Li-ion 1800 mAh/3.7V (non-removable) |
| Battery life | up to 5 hours |

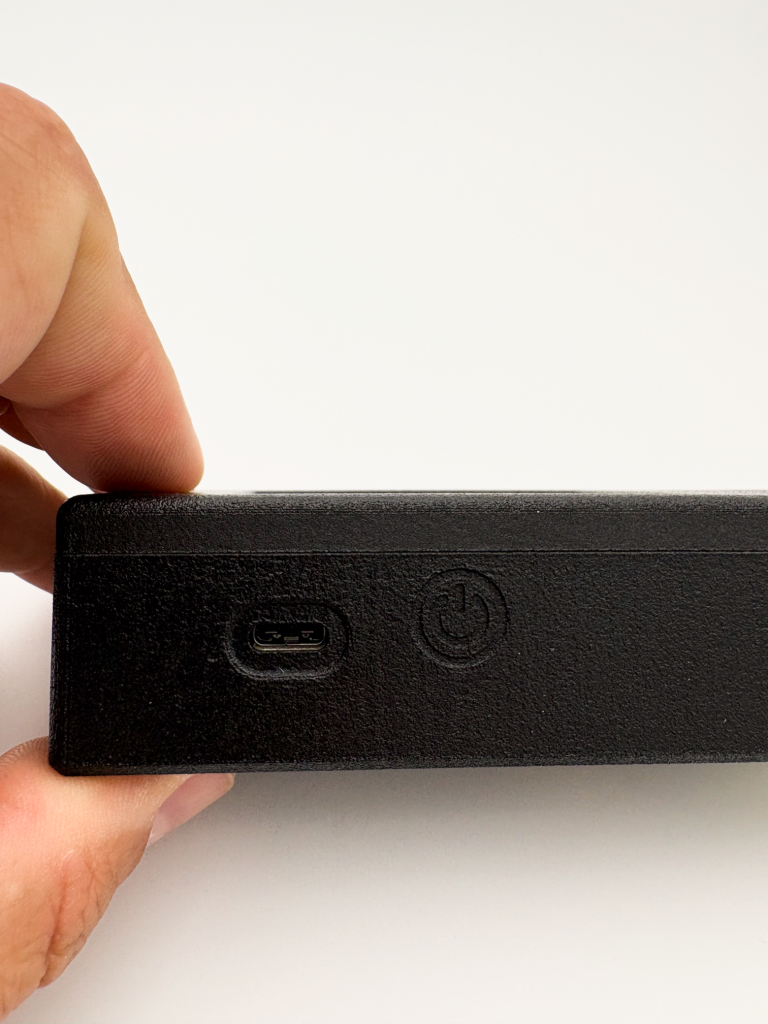

| Input power | DC 5 V, 1A, USB Type C socket |

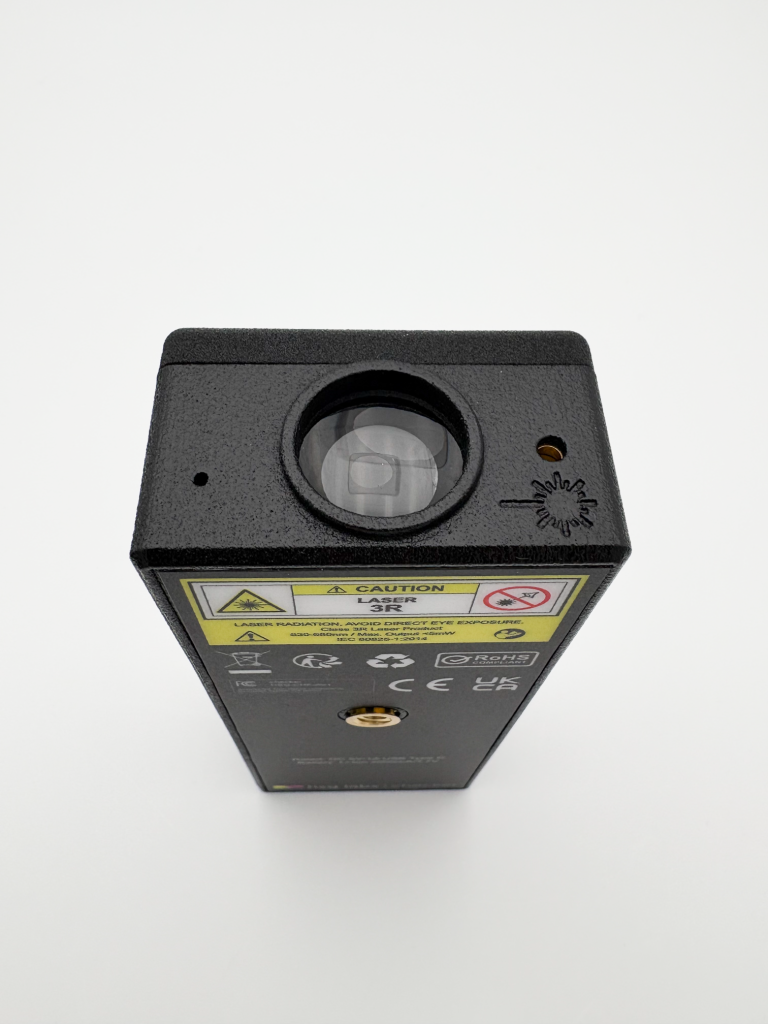

| Laser pointer | Class 3R, 5mW, 650nm (red) |
| Working Conditions |
|---|

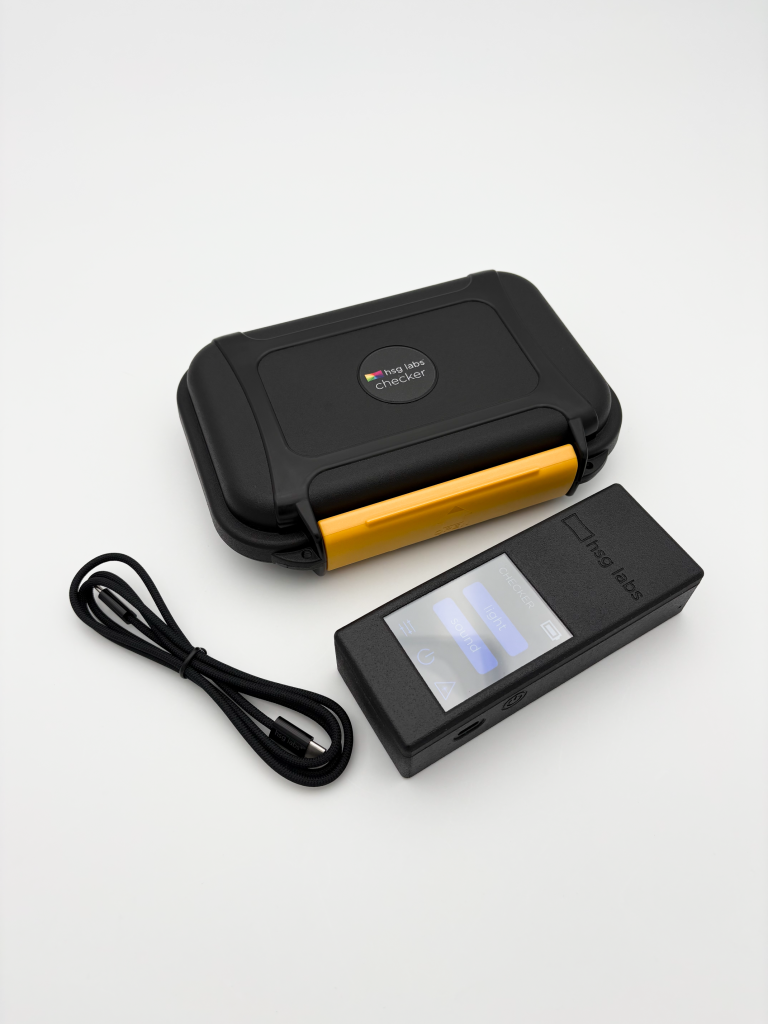

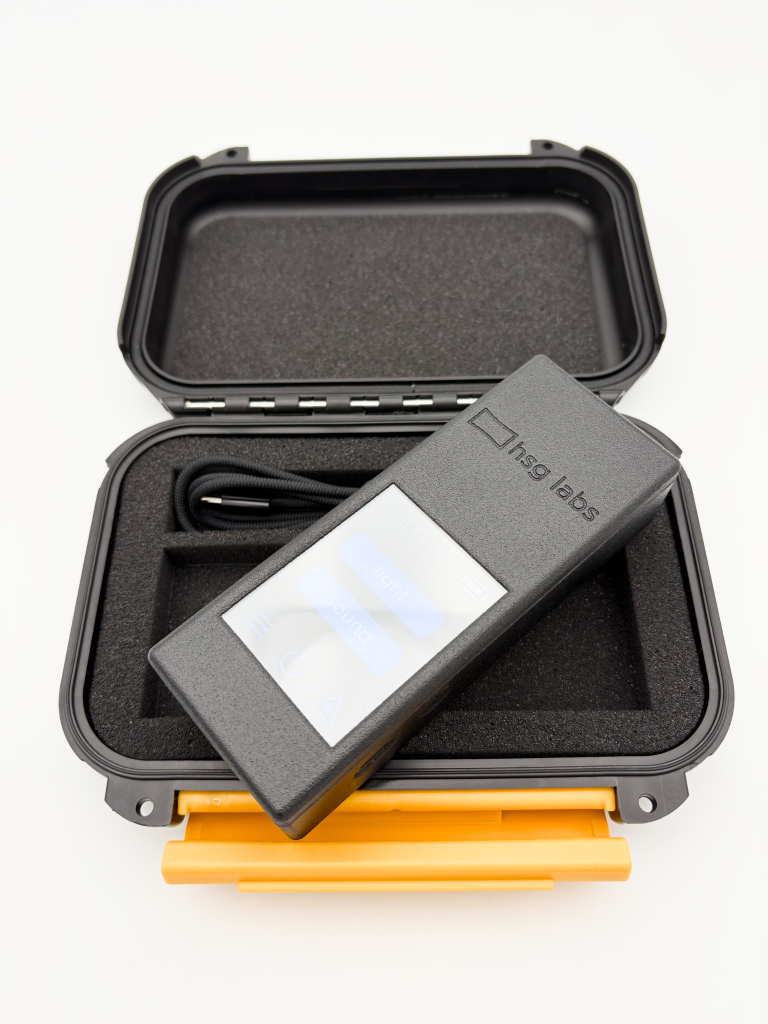

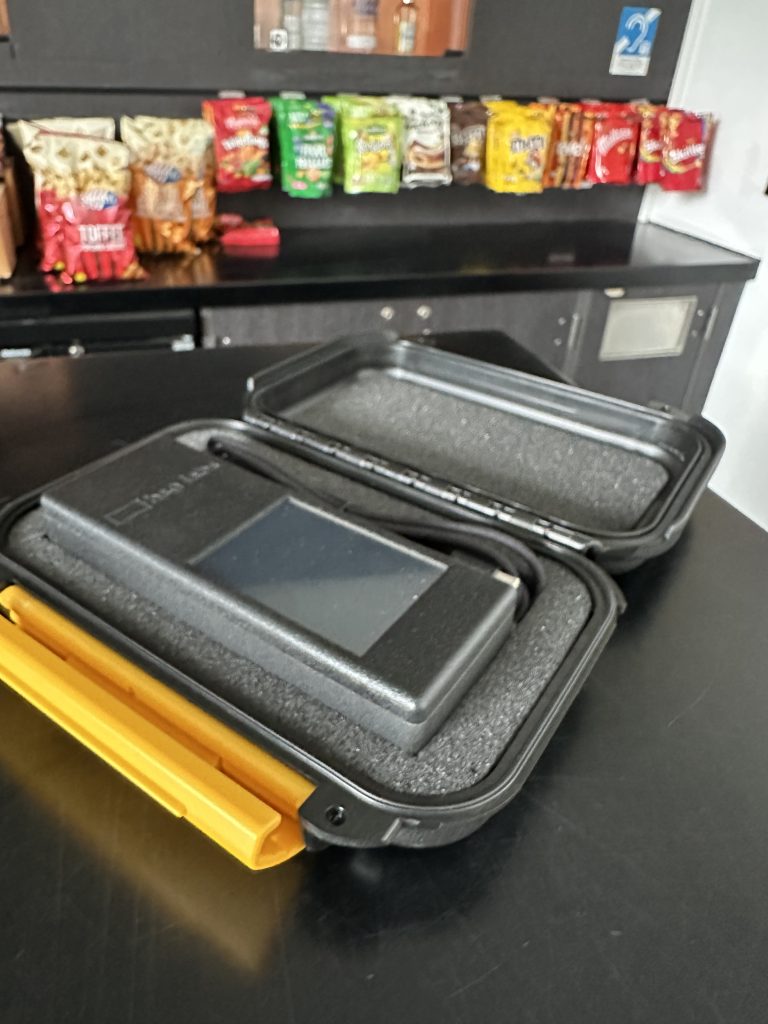

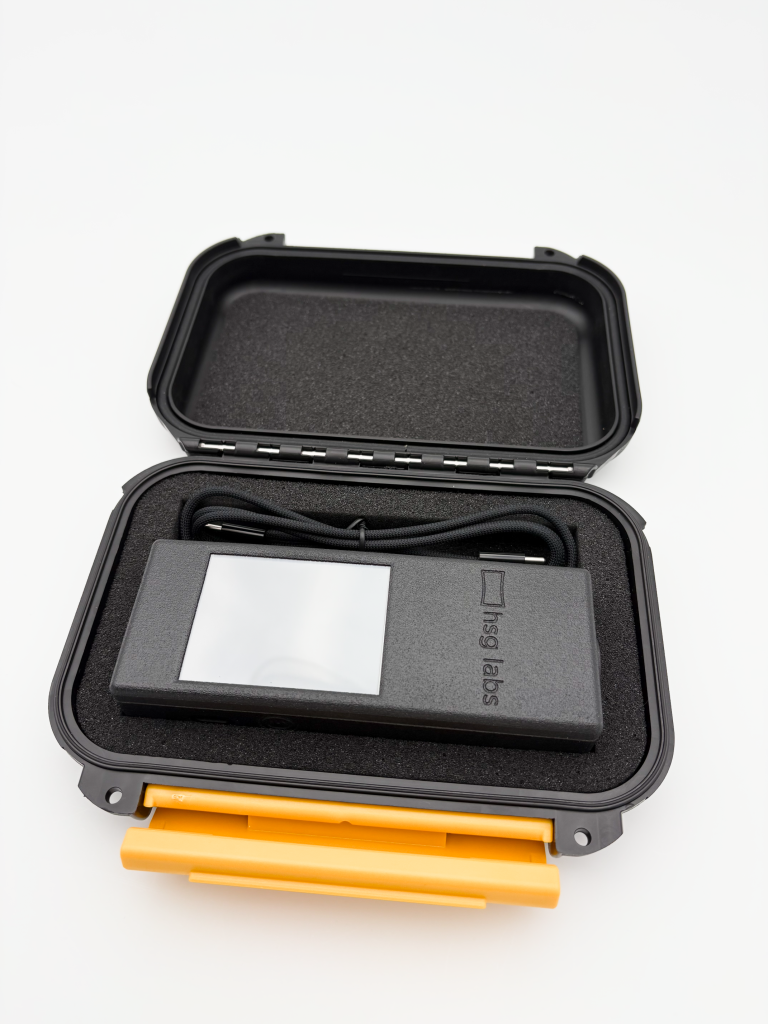

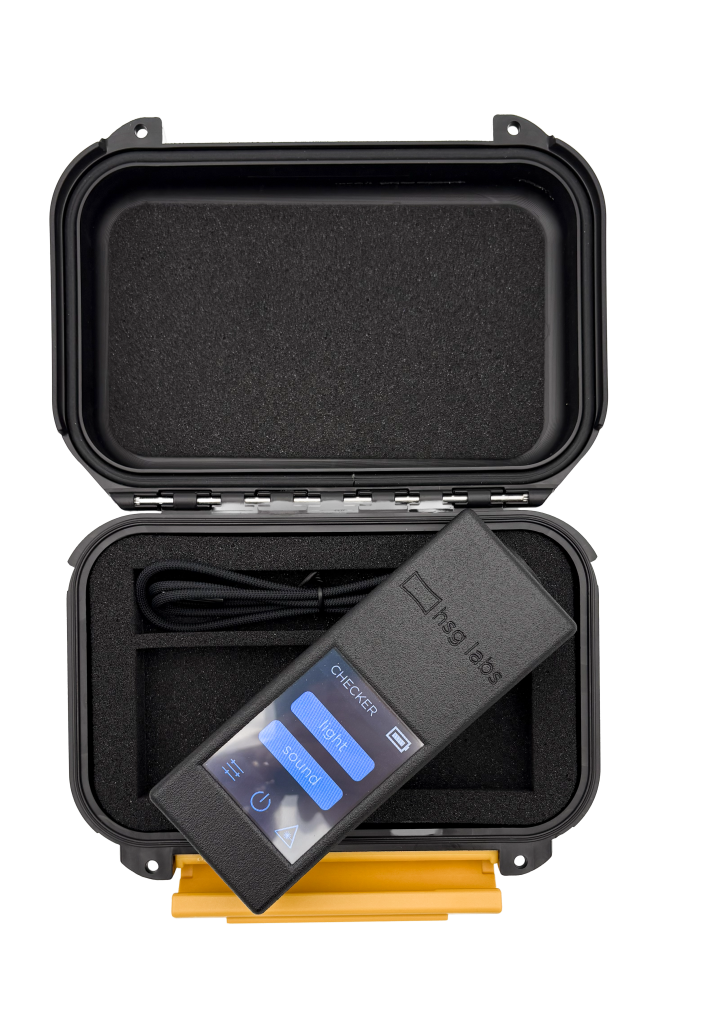

| Always transport in the carry case |
| For indoor usage only |
| Operating temperature non-condensing 5 °C to 35 °C (41 °F to 95 °F) |
| Light Sensor | |
|---|---|
| Measuring aperture | 2.5° (FOV) |
| Spectral response | 400nm to 725nm |
| Luminance range | 0.0 – 40fL (0 – 137 cd/m2) |
| Luminance accuracy | ± 1 fL (A Illuminant) |
| Audio Sensor | |
|---|---|
| Spectral response | 40 Hz to 20 kHz |
| dBc Accuracy | 1.5dB (at 1kHz) |

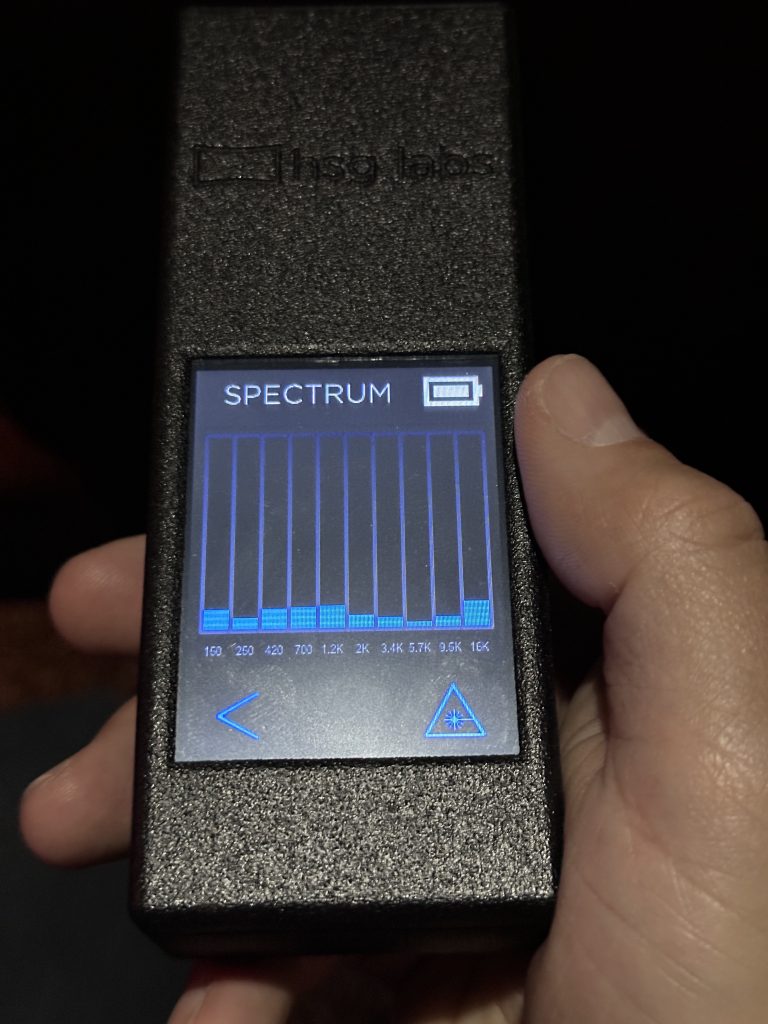

| Spectrum visualization | 10 bands (average time ± 6 seconds) |
*This device does not reach the tolerance levels required for Digital Cinema Calibration and should only be used as a checking tool. For light and sound calibration, use devices designed for calibration, like the HSG Labs Spectro or those with professional microphone calibration systems.
-
Digital Cinema Integrators and technical directors
- Technical staff and operations
-
Theater Managers
- Home Theatres
