Checker

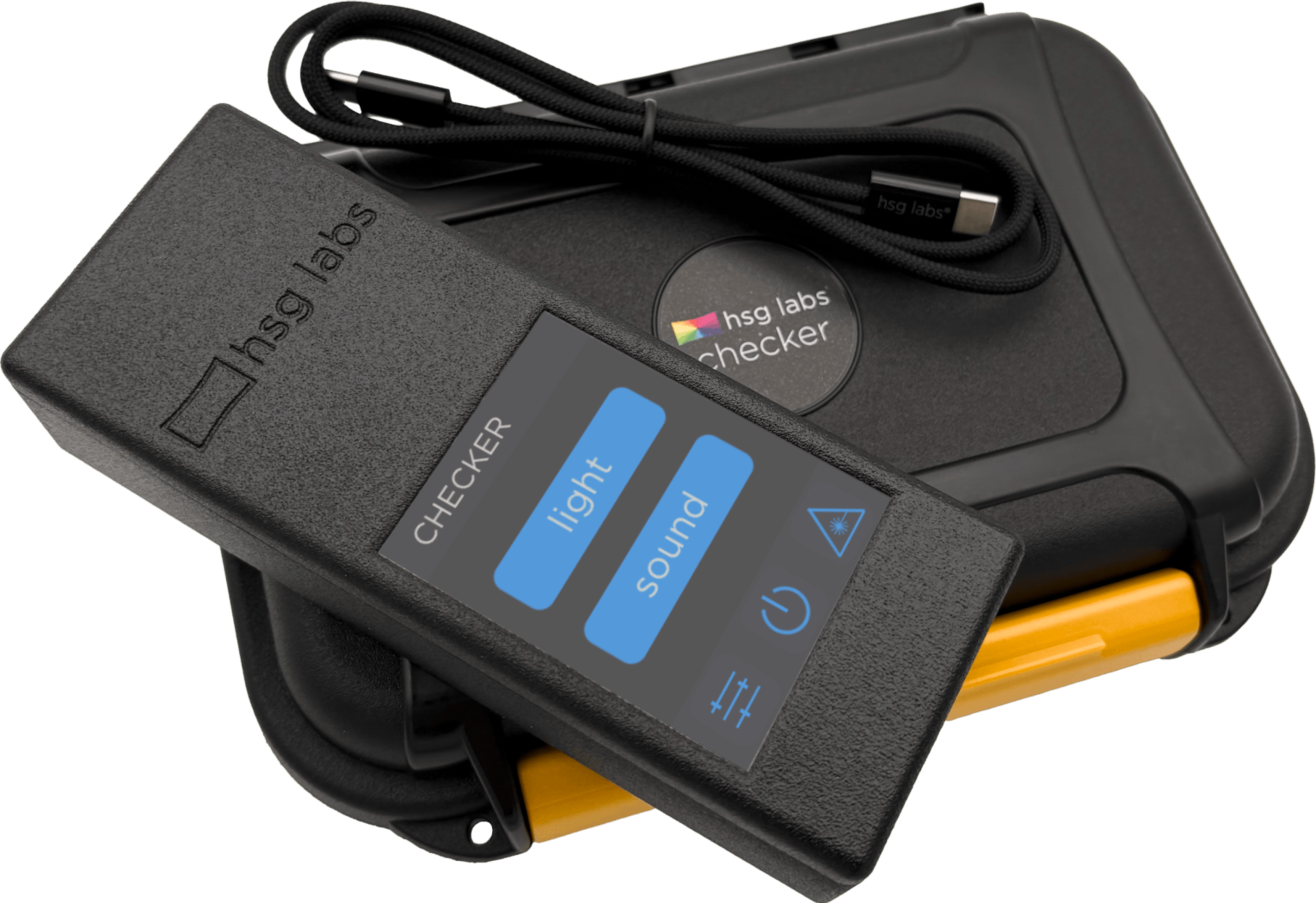

The HSG Labs Checker is a battery power handheld device that measures luminance readings for both 2D and 3D screens and is calibrated to be accurate even in the lower ranges used in 3D projection. The Checker also incorporates a audio sensor to provides dBC level and 10 band visual reference level for instant feedback on theatre quality. This low cost, pocket sized device is a necessary tool for all theaters.

Technical Specs

The HSG Labs 4A is a permanent integrated device for daily alignment operations of multiple projectors. The device can mounted to the back wall of auditoria or in the booth to ensure multiple projector images remain aligned and lenses in focus without the need for an engineer to visit. Standard features included are NOC integration and reporting alerts for remote connectivity and alignment failure notification.

Coming Early 20206

Technical Specs

LIGHT CHECKING

HSG Checker

Handheld accurate luminance meter for projected light.
Monitors screen brightness to ensure projected presentations remain at optimum levels and ensure DCI-compliancy.
Portable, easy to carry and operate.

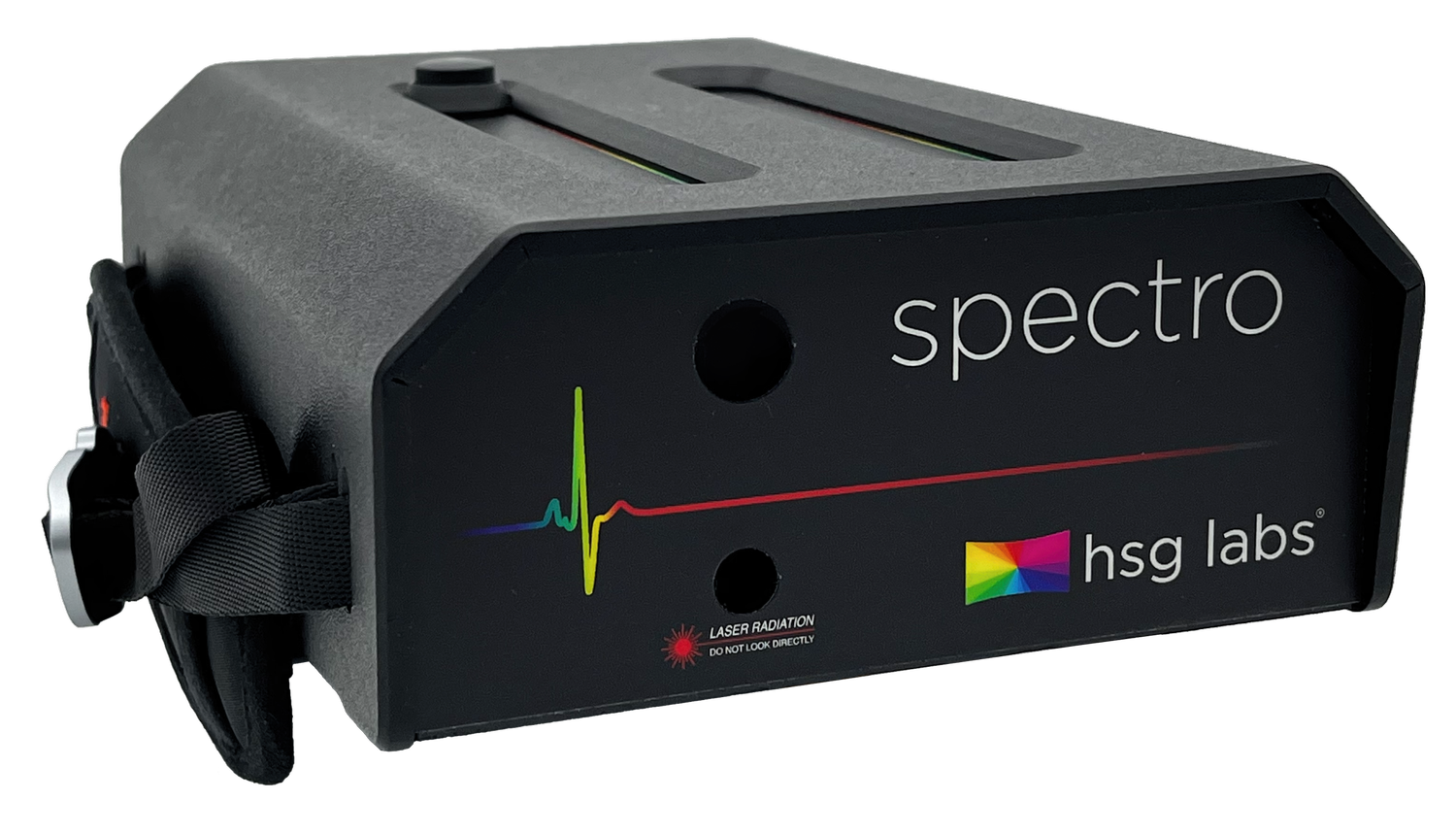

LIGHT ANALYSIS

HSG Spectro

Handheld Spectroradiometer.
for precise visible light spectrum analysis in any environment.
A built-in User-Interface and Laser-Guidance allows for easy operating and storing of data.
Ergonomically designed, robust and lightweight.

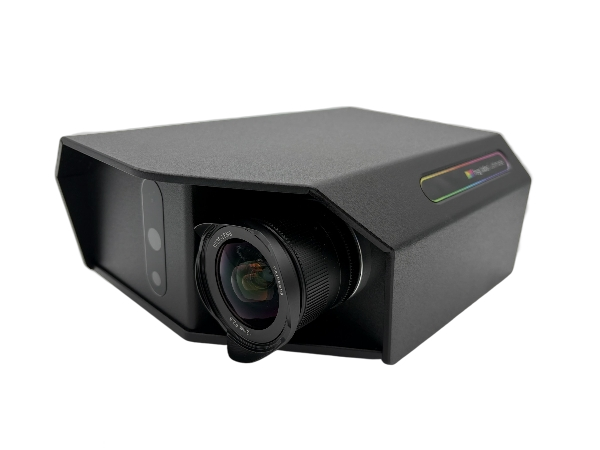

LIGHT MONITORING

HSG 4P

Accurate projection light, color and contrast calibration and reporting device.
Proprietary automated projector brightness and focus management
Permanent install or portable.

PROJECTOR ALIGNMENT

HSG 4A

Automatically aligns dual projectors with zoom and lens shift to within 0.3 pixels.
Integrates seamlessly with multi-projector and NOC cinema systems.
Typically permanent wall-mounted installation for daily use.

Compare Our Installed Devices

Choose the Right Solution for Your Screen:

Feature	Optimizer	4P	4A
Best For	Routine checks & maintenance	Premium formats & special events	Dual-projection & Large Format
Projector Alignment	No	Yes (up to 4 projectors simultaneously)	Yes (automatic for 2 projectors)
Focus Control	Yes	Yes	Yes (in 4A)
Lens Shift Alignment	No	Yes	Yes
Brightness Uniformity	Single or 144-point measurement	Single or 144-point measurement	No
Audio Channel Analysis	Yes, Atmos with license	Yes, Atmos	No
Remote Monitoring (NOC/TMS)	Yes	Yes	Yes
Recommended Use Case	General maintenance & health checks	Festival-grade image & colour tuning	Precision 3D / dual projection setups
Upgrade Opportunity	Starting point	Full calibration for top-tier venues	One touch alignment calibration

Compare Our Mobile Tools

Take Calibration Into Your Own Hands:

Feature	Checker	Spectro	4P
Device Type	Handheld mobile light and sound sensor	Spectroradiometer	Spectroradiometer/Camera
fL Reading Capability	0.5-40 fL	0.005 - 200,000 fL	0.005 - 200,000 fL / Full Screen Uniformity (5mil Points)
Audio Measurement	dBC/8-Band Spectrum	NO	Full 64 Channel Atmos with spectrum
Platform	Standalone with future Android + iOS apps	Integrated Standalone OS	Integrated Standalone OS/HDMI
Calibration Use Case	On-The-Go Light and Sound Check	Studio-grade light/color calibration tool	Full Screen analysis and color calibration tool
Ideal For	Theater Managers, Integrators, Field Teams	Cinema Engineers, Integrators, Technicians	Studios, Cinema Engineers, Projectionists, Technicians
